IMAGE INTERPRETATION · THYROID AND PARATHYROID

Lingual Thyroid on I-123 Scan

I-123 scan showing midline neck and sublingual uptake
I-123 scan showing midline neck and sublingual uptake

CC BY-SA 3.0 · Wikimedia Commons · source file

Question

An I-123 thyroid scan in a patient with a midline neck mass shows tracer uptake in the base of the tongue with NO uptake in the normal thyroid bed. This finding is MOST consistent with:

  1. AThyroid cancer metastasis to a cervical lymph node
  2. BThyroglossal duct cyst
  3. CLingual thyroid — ectopic thyroid tissue at the base of the tongue representing the only functional thyroid tissue
  4. DNormal salivary gland activity
Show the answer and explanation

C. Lingual thyroid — ectopic thyroid tissue at the base of the tongue representing the only functional thyroid tissue

Lingual thyroid is the most common form of ectopic thyroid, resulting from failure of the thyroid gland to descend from its embryologic origin at the foramen cecum (base of tongue) to its normal position in the anterior neck during fetal development. On thyroid scan, uptake appears only at the base of the tongue with absent activity in the normal thyroid bed — indicating the lingual thyroid is the ONLY functional thyroid tissue. This is clinically important: surgical removal would render the patient permanently hypothyroid. I-123 scanning is essential before any surgical intervention on such masses.

More thyroid and parathyroid images

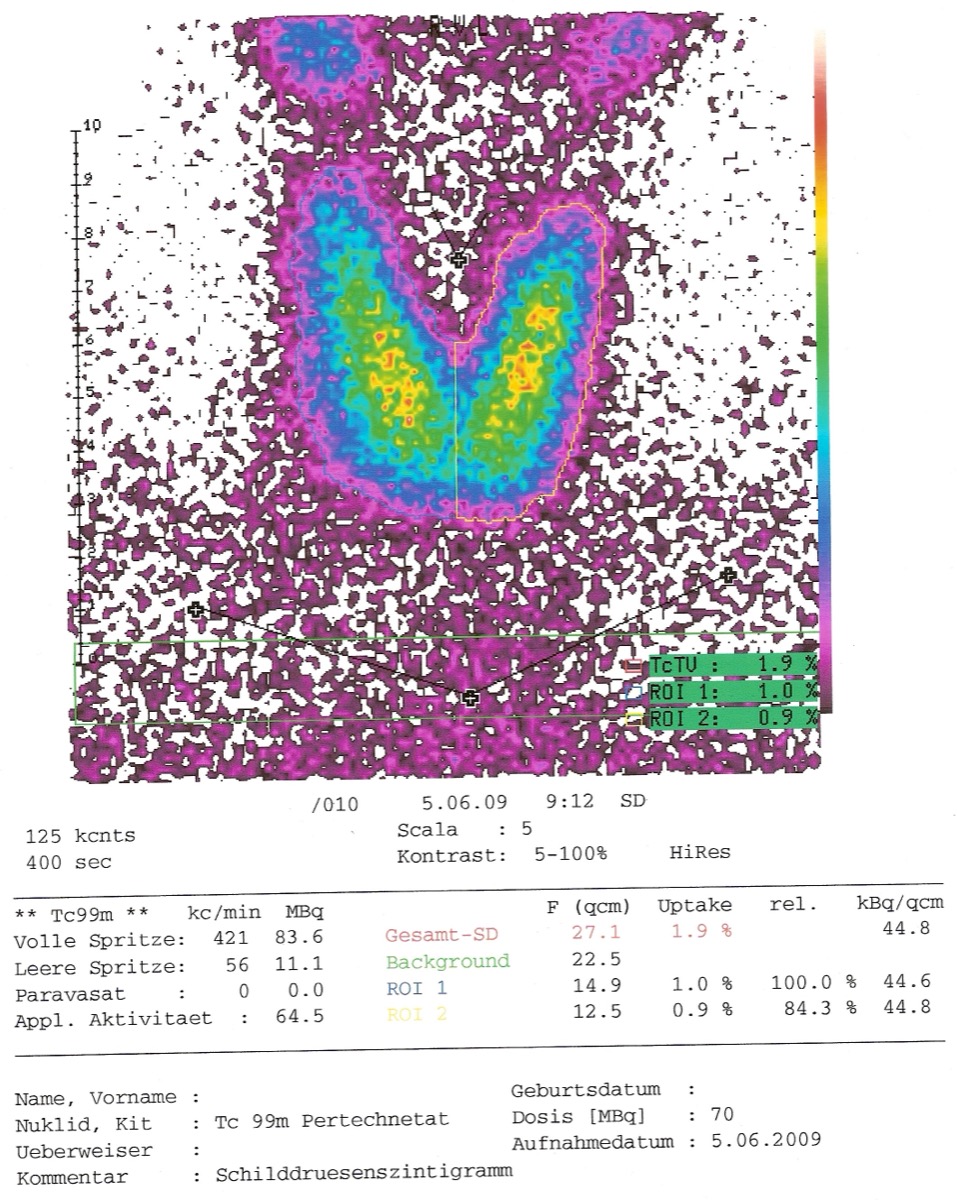

Thyroid scan after I-131 therapyI-131 Dose Calculation for Graves’ Disease I-123 thyroid uptake studyNormal Radioactive Iodine Uptake (RAIU) Range Post-ablation thyroid scan — normal physiologic distribution after thyroidectomyThyroglobulin Monitoring After Thyroid Cancer Ablation Thyroid scan after large diagnostic I-131 doseThyroid Stunning After Diagnostic I-131 Tc-99m sestamibi parathyroid scintigraphy — dual-phase imagingParathyroid Adenoma on Dual-Phase Sestamibi Scan Thyroid scan — diffusely enlarged gland with homogeneously increased uptake, no discrete nodulesGraves’ Disease on Thyroid Scan
